Laminator Series

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Center driven rewind stand using open loop torque control
  • Center unwind with floor pick up and ultrasonic tension control
  • (4)Cold laminating nips
  • Manual roll positioning on unwind
  • Multiple unwind positions



Products

Guide to Slitting Methods

Request a Quote



Back

Cold Roll Laminator

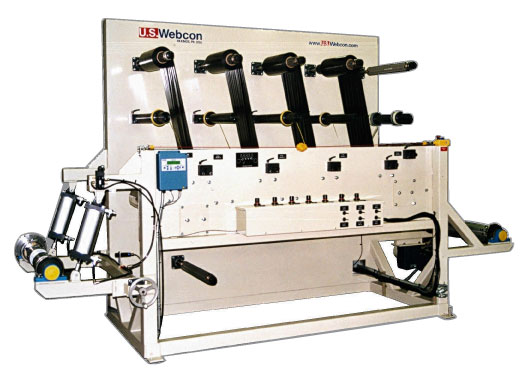

Cold Nip Laminator

The above Cold Laminator is used to laminate four layers of a polythylene film with a pressure sensitive adhesive (PSA) to a polyester film to fabricate a consumer product.


Machinery Included:

  • (6) Cantilevered unwind stands
  • (1) Floor pick up polyester unwind
  • (3) Idling Cold laminator positions
  • (1) Driven Cold laminator position
  • (1) Center driven rewind stand with open loop torque wind

US Webcon offers a series of heavy duty industrial Cold Roll laminators to meet your production needs with numerous features and customized options to fit your specific requirements. The US Webcon cold roll laminators are designed to laminate multiple films and paper products together on a roll to roll basis.  The webs are passed through a common nip point using a cold PSA adhesive to bind the laminate together.


Options:

  • Hot roll laminating
  • Edge trimming
  • Automatic edge guiding or manual positioning
  • Closed loop load cell or dancer tension control
  • Splice boards and clamps
  • Accurate digital footage counts using AC drives with dynamic braking coupled with two preset counters that signal the drive to start de-accelerating prior to stopping

Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
