Small Roll Break Down Log Winder

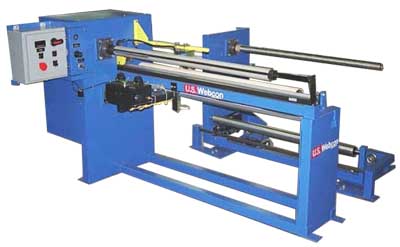

small roll cantilevered log winder

The above small roll log winder was designed to break down large rolls of foam into small rolls.

US Webcon offers a complete line of stand alone of break down log winders and turret log winders to meet your production needs with numerous features and options to fit your specific requirements The above cantilevered shafted center log winder stand is designed to unwind large rolls of light weight foams, nonwoven and other web materials and break them down into small diameter product rolls on a roll to roll basis. This unit includes the following; load cell tension control system, pneumatically actuated cross cut knife, footage counter and a guided unwind. Both the winding operation and the cross cut knife have two hand safety switches to prevent operator injury. The cantilevered airshafts eliminate the need for the operator to handle heavy shafts reducing potential for back injuries and other lifting related injuries.

Features:

  • Rigid steel structural tubing construction for 24/7 operation.
  • Two hand safety switches for complete safety of the operator.
  • Air expanding shafts using aluminum construction
  • Cantilevered or fully supported designs available.
  • Open loop ultrasonic or closed loop load cell or dancer tension control.
  • Optional electro mechanical guiding with photo or ultrasonic sensors.
  • Driven unwinds for low tension applications.
  • Pneumatic or magpartical brakes available.
  • Optional lift tables, floor pick up or let down to load and unload rolls.
  • Accurate footage counts using AC drives with dynamic braking coupled with two preset counters that signal the drive to start de-accelerating prior to stopping.
