Narrow Web Handling

Features:

  • Compact unit is inexpensive & highly versatile
  • The addition of individual process modules increases functionality without consuming additional floor space
  • Some available process modules:
    - Coating
    - Doctor machine
    - Electronic inspection
    - Logroller
    - Splice station
    - Web cleaner
  • Roll diameters to 30"
  • Roll widths to 30"
  • Tension control
  • Edge guiding



Products

Guide to Slitting Methods

Request a Quote



Back

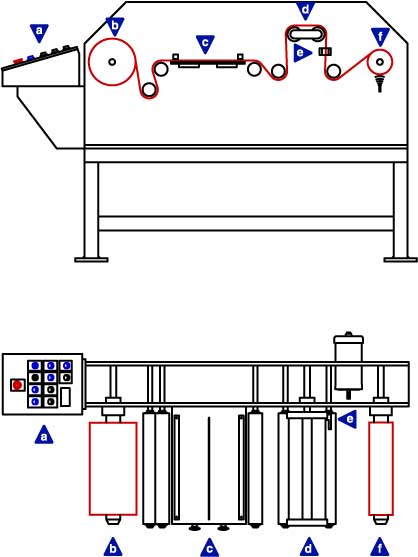

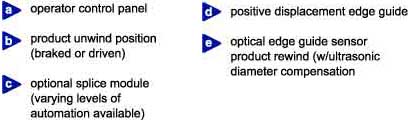

Combination Unwind/Rewind System for Narrow Webs

The Camel
lThe Camel is a highly versatile, compact, and inexpensive narrow web transport system. Individual process modules can be added to increase functionality without consuming additional floor space.

Some available process modules which can be added in combination to customize the Camel are as follows:

  • Coating
  • Doctor machines
  • Electronic inspection
  • Heat setting
  • Logroller
  • Splice station
  • Web cleaner









narrow web inspection winder with slitting and edge guiding
This narrow web inspection winder is designed so that the operator can sit in front of the inspection table reducing operator fatigue.


The Mutt
The Mutt is an inspection winder with slitting capability. It has been designed to allow an operator to inspect the web and perform any splicing operations necessary from the workstation. The unit is designed to accept score, shear, or razor slitting, and it can be supplied with a center driven single or multi position winding station. The Mutt will handle web widths to 30", is fully cantilevered, and is supplied with tension control and edge guiding.

Ergonomic design allows the operator both comfort and easy access to fully control the machine from the workstation.

  • Visual inspection winder
  • Slitting capability (razor, shear, or score)
  • Cantilevered / shafted
  • Single or multi position winding
  • Accommodates web widths to 30"
  • Tension control
  • Edge guiding
