Pallet Dispenser

Features:

  • Automatically dispenses or stacks 3 pallets per minute
  • Standard stack height capacity: up to 12 same size pallets
  • Fully Welded heavy-duty construction for 24/7 operation
  • Shipped pre-piped and wired
  • Air operated scissors lift for pallet stack manipulation
  • PLC Controlled
  • Fabricated of structural steel and steel plate
  • Pneumatically operated "dog type" tabs capture the stack while an air operated scissor lift lowers the stack
  • Factory tested



Products

Guide to Slitting Methods

Request a Quote



Back

Inline Pallet Dispenser

Go to Extended Height Pallet Stacker

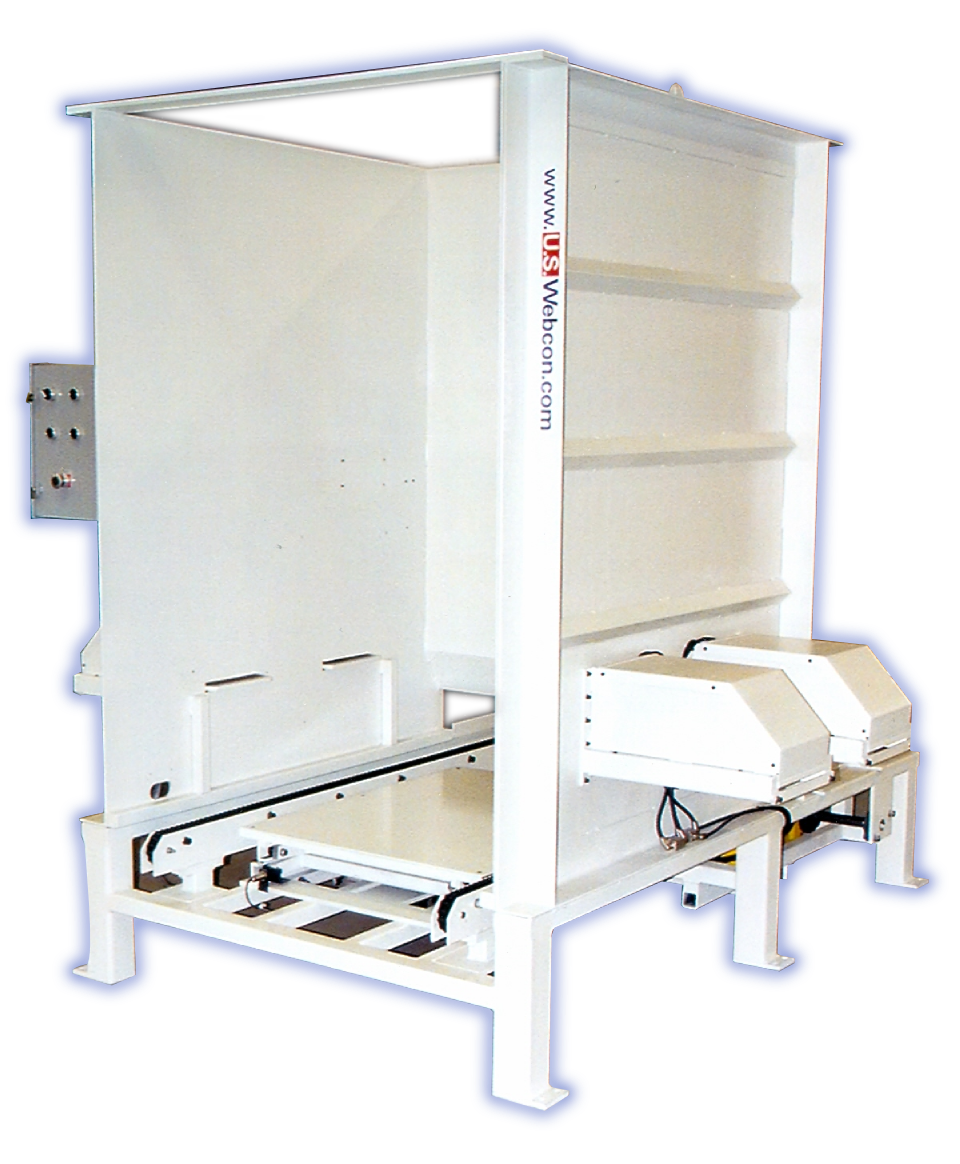

Pallet Dispenser

Inline Pallet Dispenser designed with pallet loading and pallet dispensing opposite but inline from one another.


US Webcon offers a complete line of Pallet Dispensers to meet your production needs with many features options to meet your specific requirements.



Pallet Dispenser Description

This piece of pallet handling equipment is designed to dispense single pallets from a stack, onto a conveyor. This style utilizes a scissor lift and pneumatic pallet tab assemblies to lift and suspend the pallet stack and an integral chain conveyor to discharge the pallet onto the line. The pallet loading opening is placed inline and opposite from the discharge opening.

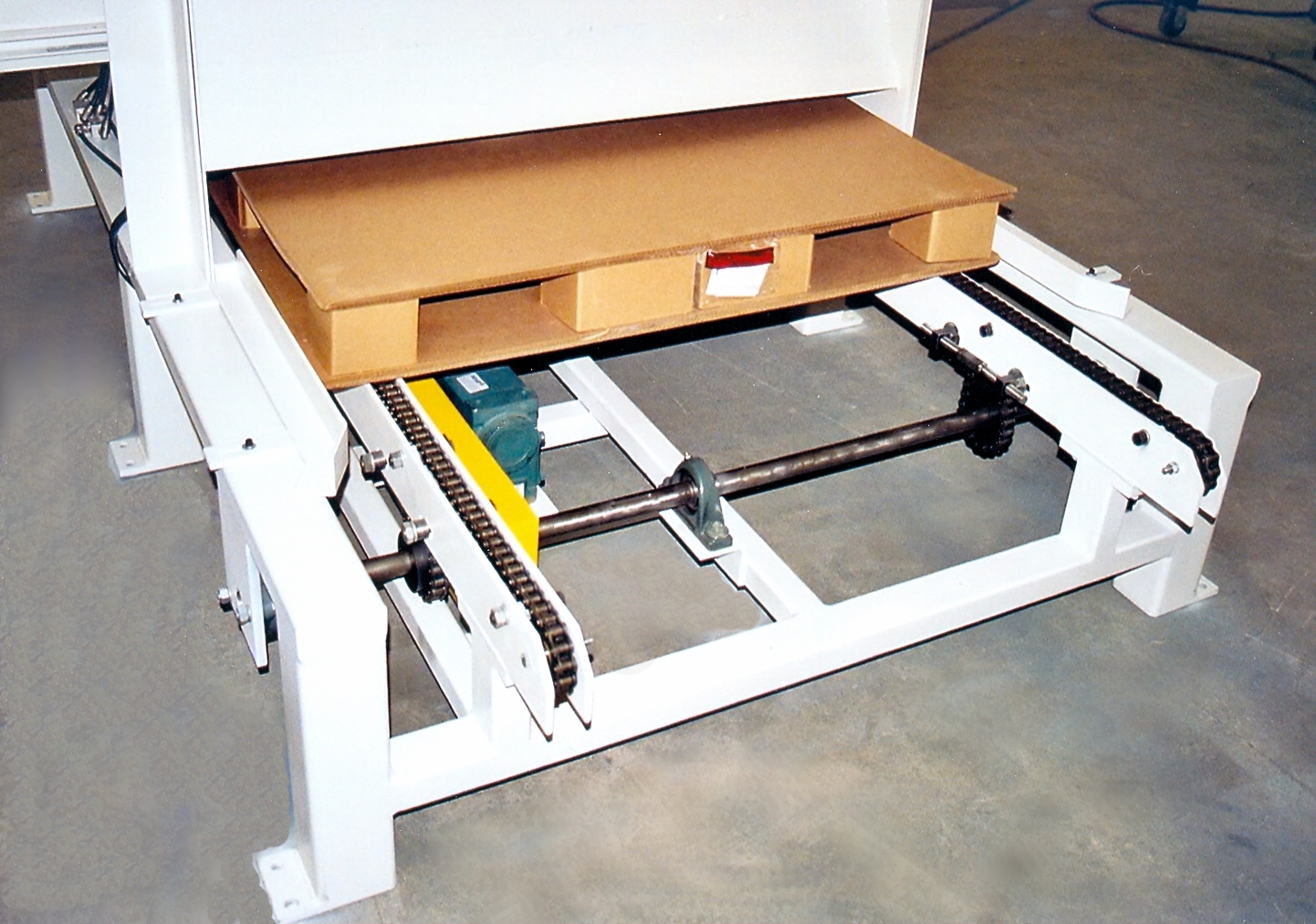

pallet dispenser with chain conveyor out feed

View of the integral chain conveyor unloading a custom card board pallet.


Options:

  • Additional pallet stack height magazine
  • Custom pallet sizes
  • Infeed or takeaway chain conveyors
  • Custom paints and construction materials
  • Supplied without controls for OEMs
  • Dispense and stack pallets at floor level
  • Pallet loading at 90 deg’s to dispensing

Complimentary Products:

  • Chain Conveyors
  • Roller Conveyors
  • Pop up Transfers
  • Work Stations

Related products:





US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
