Turret Unwinds & Winders

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Shaftless roll to roll unwinding
  • Air expanding side mounted chucks
  • Center justified chuck positioning through motor and lead screw operation
  • Pneumatic disc brakes
  • Dancer or load cell closed loop tension control



Products

Guide to Slitting Methods

Request a Quote



Back

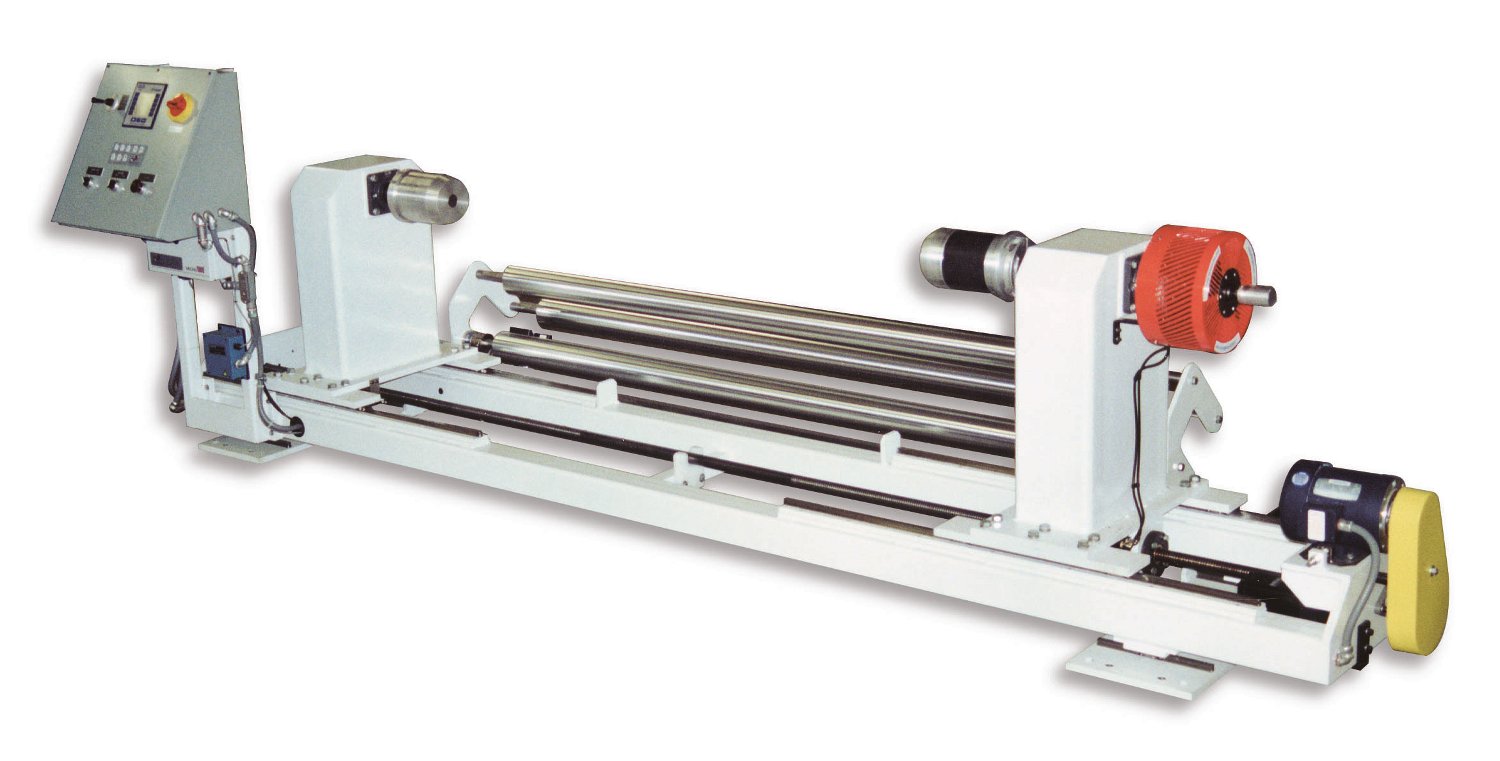

Medium Duty Shaftless Unwind Stand

shaftless unwind stand

The above medium duty shaftless unwind stand was designed to unwind a nylon moisture barrier film used in the construction industry. The machines are designed to minimize the inherent dangers of handling heavy shafts that lead to operator fatigue and back injuries by eliminating shaft handling altogether.

US Webcon offers a complete line of Shaftless Center Unwind Stands and Rewind Stands to meet your production needs with numerous features and options to fit your specific requirements. The US Webcon shaftless unwind unit is designed to unwind rolls of paper, film and nonwoven product directly into the your process on a roll to roll basis. The web tension is automatically controlled using a load cell tension controller with feedback to a pneumatic brake for closed loop control. The output of the controller maintains the correct tension from the pneumatic brake changing dynamically as the product roll unwinds. A fully automatic web edge guide will unwind the web to a point determined by the edge detector with manual and servo center options.

Options:

  • Under or over unwind operation
  • Light, Medium or Heavy duty applications
  • Magpartical brakes for tension sensitive webs
  • Economical shaftless designs available
  • Automatic edge guiding or manual positioning
  • Skew rolls available
  • Driven unwinds for low tension webs
  • Optional Touch Screens
  • Optional hydraulic lift tables for roll loading or unloading
  • Winders supplied with AC or DC drives with speed or torque control

Related Products:

US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
