Economical Series

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Shaftless roll to roll surface winding
  • Roll discharge
  • Side paddles to control core position



Products

Guide to Slitting Methods

Request a Quote



Back

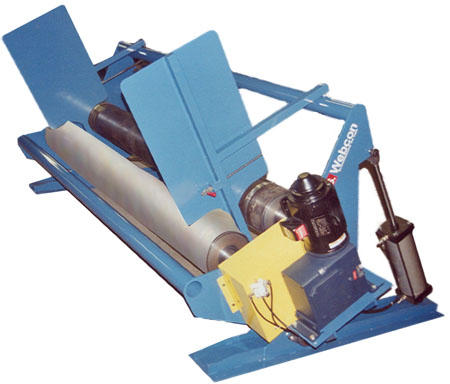

Textile Surface Winder

Surface Driven Textile Winder

The above medium duty shaftless textile surface driven winder with the side guides was designed to surface wind an automotive carpet and then dump the finished roll on the floor or a cart using pneumatic actuated cylinders.  The floor dump option eliminates the need for a roll handling hoist.

US Webcon offers a Shaftless Surface Driven Winder to meet your production needs with numerous features and options to fit your specific requirements.  The US Webcon Surface Driven Winder unit is designed to wind textiles, coated fabrics, carpet and nonwoven product on a roll to roll basis.  A set of side guide panels control the position of the core during wind up.  The machine frame is mounted on a pneumatically actuated pivoting frame that allows the operator to dump the finished roll onto the floor or a waiting cart.

Options:

  • Shafted operation
  • Score cut or shear cut slitting
  • Automatic edge guiding or manual positioning
  • Skew rolls available
  • Load cells or dancer web tension control



Surface Driven Unwinds and Rewinds

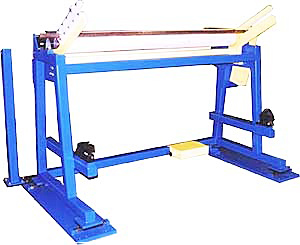

surface driven unwind with edge guiding
This surface driven unwind was designed to as a low cost method of unwinding a very stretchy knitted light weight Lycra web without having to incur the cost of expensive center driven technology.



Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
