Economical Series

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Self Threading units for easy web up
  • Precision aluminum idlers
  • Multi turn potentiometer to track carriage position
  • Manual or automatic operation
  • Pneumatically counter balanced web accumulation carriage
  • Narrow or wide web applications



Products

Guide to Slitting Methods

Request a Quote



Back

Narrow Web Horizontal Double Pass Accumulator

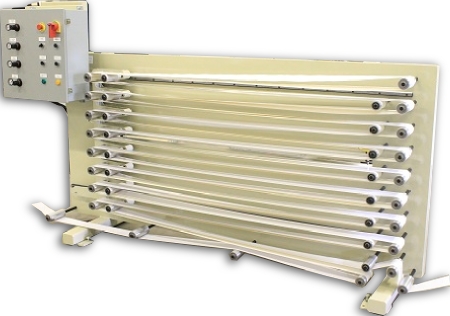

cantilevered horizontal web accumulator

The above pictured Accumulator was constructed as a cantilevered horizontal double pass unit designed to accumulate narrow web material.

US Webcon offers a line of Narrow Web Festoon Accumulators to meet your production needs with numerous features and options to fit your specific requirements. This Web Festoon Accumulator was designed as a double pass self threading unit with an optional integral driven pull roll. The self threading arrangement allows the operator to simply pull the web straight through the roll sets without having to pass the web up and down hand over hand. The accumulation carriage uses pneumatic operation to counter balance the carriage and load the web. The machine can be supplied with either simple limits or a potentiometer to indicate full and empty conditions.

Options:

  • Integral or free standing pull rolls
  • String potentiometer to track carriage position
  • Double pass idler arrangement for maximum storage
  • Brake nips to increase web tension
  • Unwind and rewind stands
  • Optional touch screens

Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
