Web Accumulators

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Low tension operation
  • Counterbalanced carriages
  • Integral pull roll
  • Load cell trim
  • Vector drives to control carriage position
  • Linear potentiometers to track carriage position
  • Precision low inertia aluminum idlers
  • HMI Touch Screens for operator control

Options:

  • Dancer feedback for carriage operation
  • Pneumatic operation for higher tensions
  • Self Threading for easier web ups
  • Double pass idler arrangement for maximum storage
  • Unwind and rewind stands



Products

Guide to Slitting Methods

Request a Quote



Back

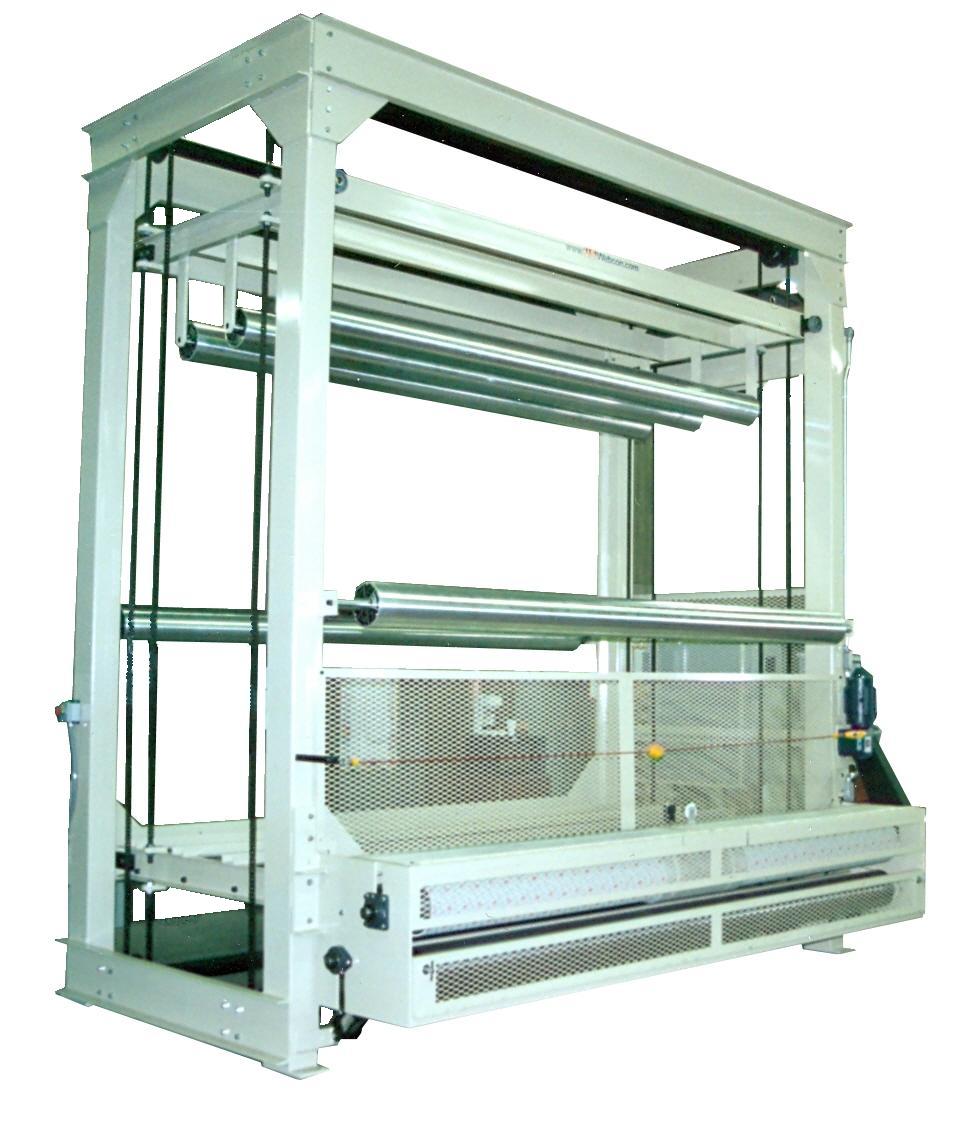

Low Tension Dual Carriage Web Accumulator

Low Tension Dual Carriage Web Accumulator

The above Accumulator was constructed as a dual carriage unit designed to accumulate web at very low tensions using a set of motor driven carriages trimmed by load cells or a dancer.

US Webcon offers a line of Low Tension Web Accumulators to meet your production needs with numerous features and options to fit your specific requirements. This accumulator uses a set of motor driven carriages mounted in a vertically operated framework. The frames are mechanically coupled together so that they counter balance each other. The carriages follow line speed and are trimmed to maintain tension using load cells or a dancer.


Self Threading Web Accumulator

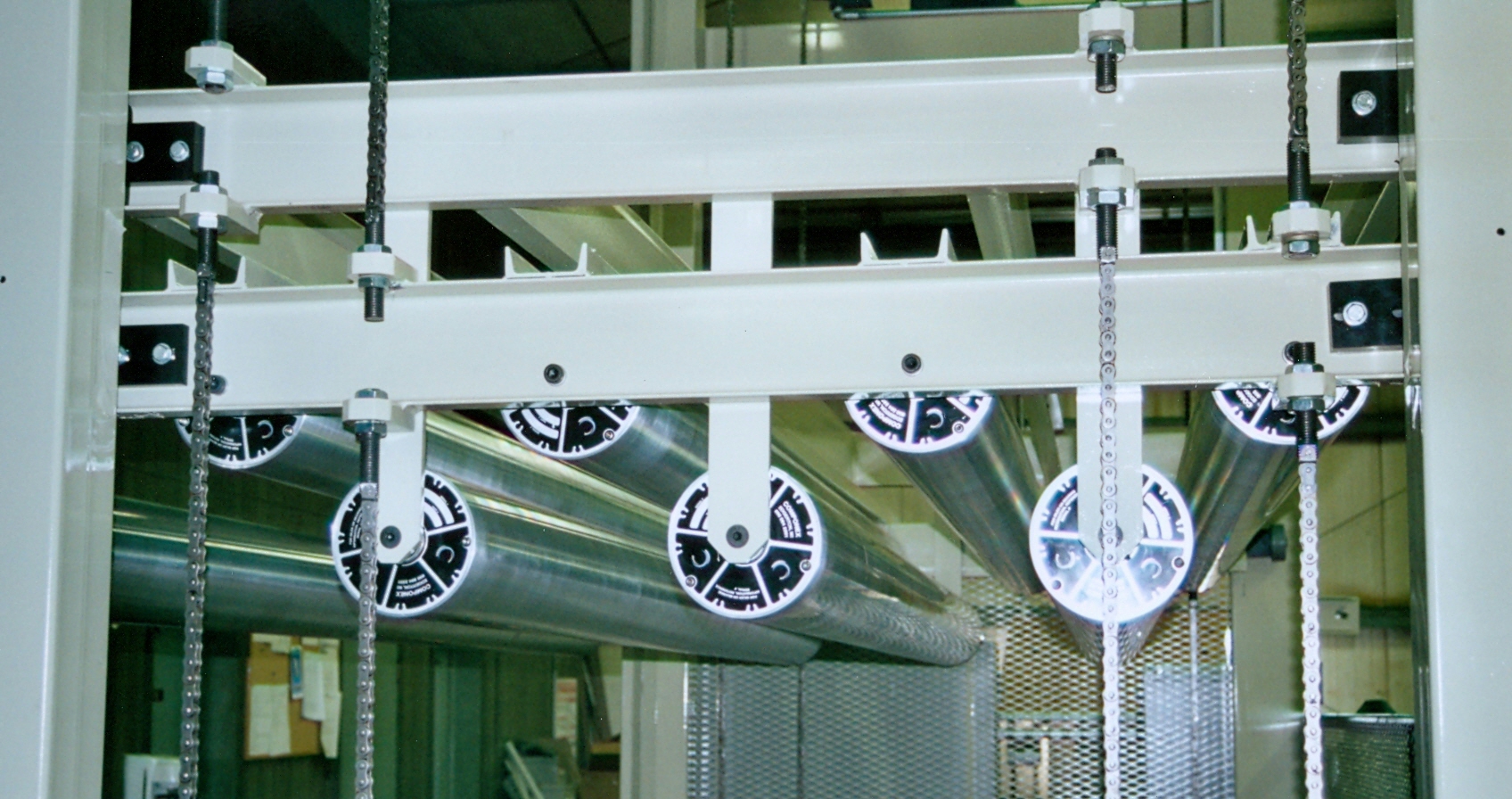

The closed position is shown for pass thru self threading centered vertically in the framework.

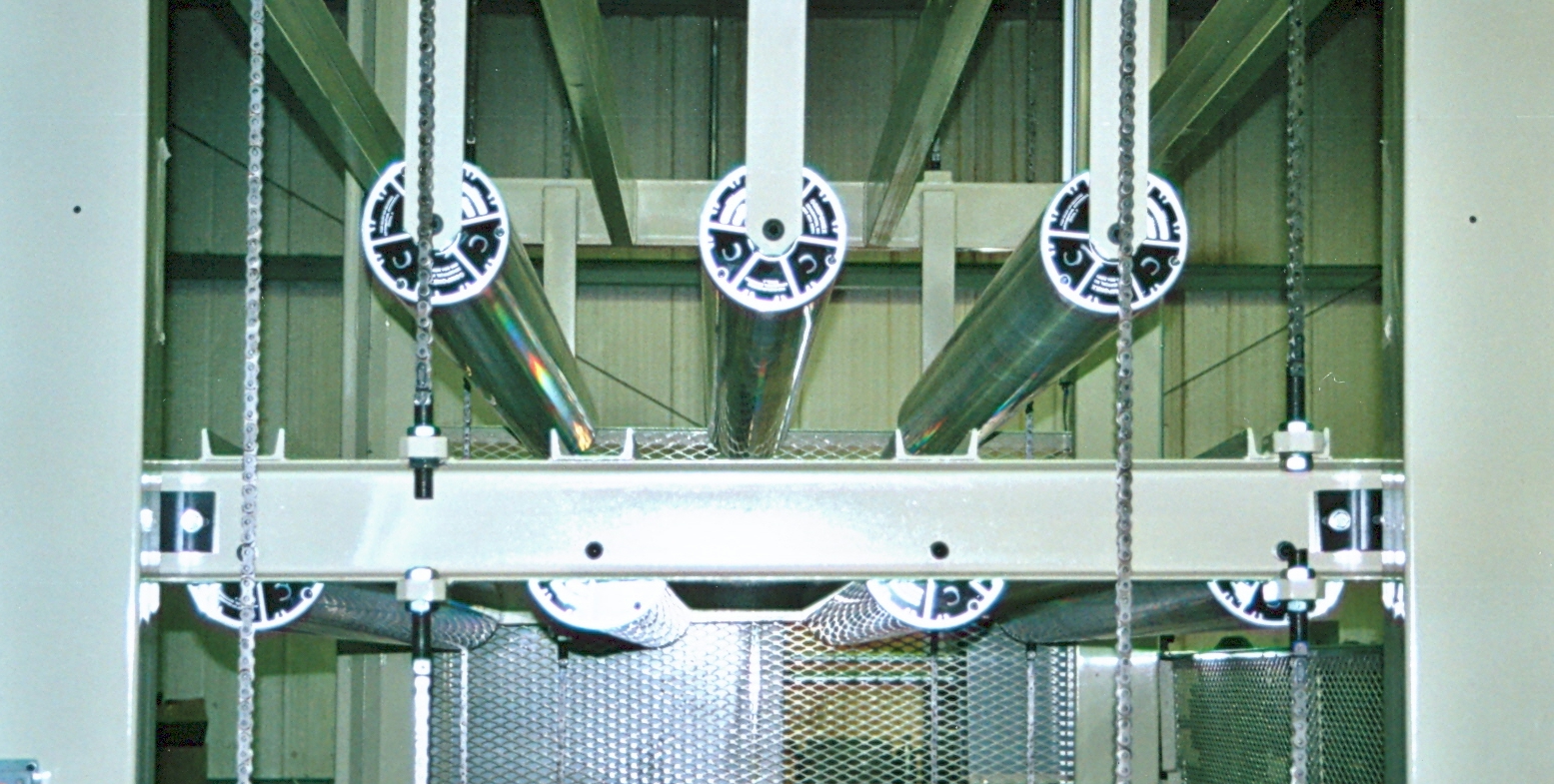

Carriage opening within the accumulator

The carriages are shown partially open after the accumulation rolls have passed thru each other.

Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
