Flame Laminators

Features:

  • 2,3 or 4 roll configurations available
  • High capacity, adjustable gas ribbon burners
  • Gas premixers for variable flame adjustment
  • Adjustable slat expander (for wrinkle-free prod.)
  • Digital roll nip positioning
  • Electromechanical web positioning system
  • Water-cooled rolls
  • Machinery delivered prewired and pre-piped

Products

Guide to Slitting Methods

Request a Quote



Back

Flame Laminator and Bonders for Foam Lamination



US Webcon offers a series of flame laminators and bonders designed to primarily laminate polyurethane foams to fabric, vinyl and other foams. This process can also be used on polyethylene and polypropylene foams. The resultant bonding within the laminate is very strong and durable.

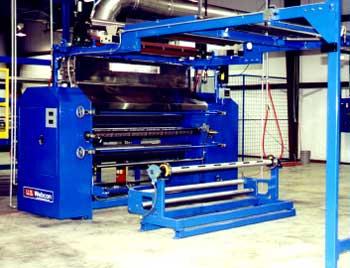

custom flame laminator used to laminate polyurethane foam and body cloth

This custom flame laminator was produced by U.S. Webcon for a client serving the automotive industry.

This particular laminator has a three roll configuration, water cooled rolls, stainless steel hoods, and full pollution controls.

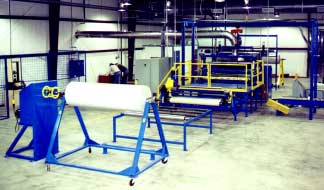

View of rewind end using mobile A-frame winders and independent splined driver stands.

This flame laminator uses mobile A-frame winders to wind 10 ft. diameter rolls of laminated product. The A-frames are used to transport the finished laminate to the inspection winders for unwinding and finishing.

Related Products:

Available Options:

  • Mobilight A-frame unwind/rewind stands with spline drive stations
  • Graphic workstation touch screen controls
  • Accumulators: scray, serpentine, or conveyor
  • Off-line:
  • Roll make-up & inspection stations
  • Log rolling stations
  • Roll handling, shrink-wrap & palletizing stations
  • Edge trim stations
  • Automatic tension control
  • Automatic splicing & continuous operation
  • Center or surface winders
  • Full pollution control systems
  • Tenter frames



Related Products:



US Webcon can modify the above design to meet your specific needs and requirements.  Call us to discuss your application with one of our engineers at (570) 644-1401.
