Inspection Equipment

Features:

  • Rigid steel structural tubing construction for 24/7 operation.
  • Center driven rewind stand.
  • Back lit inspection surface.
  • Splice board with pneumatically actuated clamps.
  • Guided rewind stand.
  • Closed loop dancer tension control.



Products

Guide to Slitting Methods

Request a Quote



Back

Inspection Winders & Rewinders

Go to Narrow Web Inspection Winder

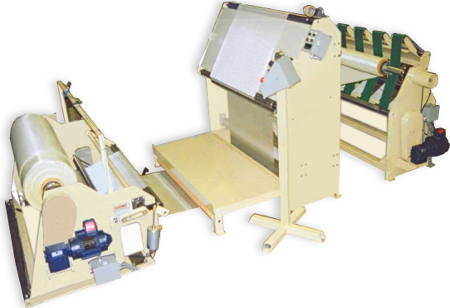

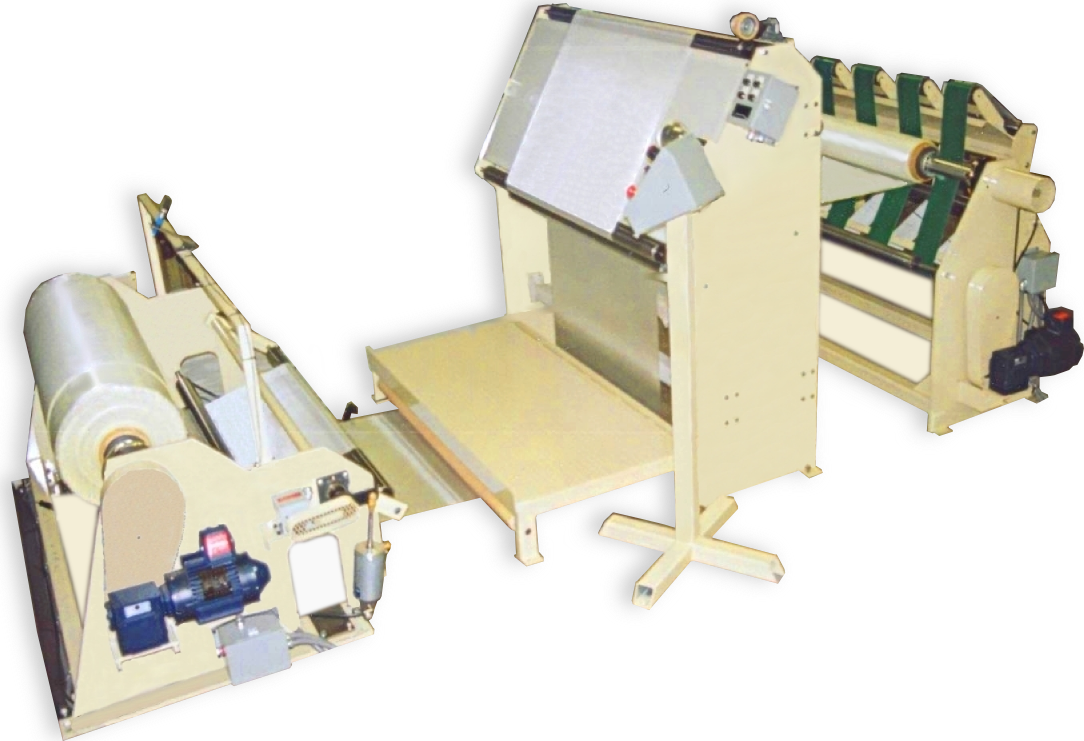

Inspection Winder

The above Inspection Winder is used to unwind and rewind a narrow a woven fiberglass web for manual visual web inspection.


Machinery Included:

  • Surface Driven Unwind Stand
  • Sloped back lit inspection table
  • Center driven rewind stand with dancer tension control and guiding

US Webcon offers a series of wide web Inspection Winders to meet your production needs with numerous features and customized options to fit your specific requirements. The US Webcon inspection winder is designed to inspect the web surface of paper, film and nonwoven products on a roll to roll basis using back lighting or optional top lighting to highlight web defects for visual detection by the operator.


Options:

  • Top or over head lighting
  • Edge trimming
  • Automatic edge guiding or manual positioning
  • Closed loop load cell tension control
  • Two drum surface winders
  • Center unwinds
  • Splice boards and clamps
  • Vacuum hold down to replace clamps
  • Accurate footage counts using AC drives with dynamic braking coupled with two preset counters that signal the drive to start de-accelerating prior to stopping

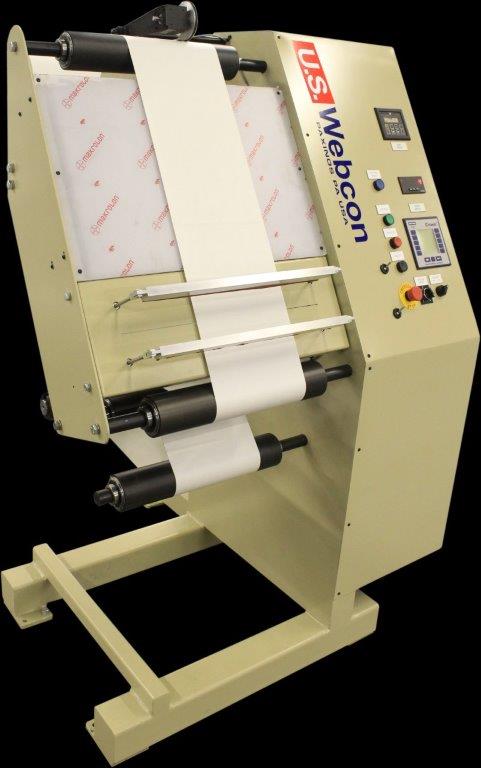

Cantilevered Inspection Winder

The above Cantilevered Inspection Winder is used to unwind
and rewind narrow webs for manual visual web inspection.

Related products:





US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
