Inspection Winders

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Cantilevered shafted roll to roll center winding
  • Back lit inspection surface
  • Splice board with pneumatically actuated clamps
  • Guided unwind stand
  • Closed loop load cell tension control



Products

Guide to Slitting Methods

Request a Quote



Back

Narrow Web Inspection Winder

Cantilevered Inspection Winder

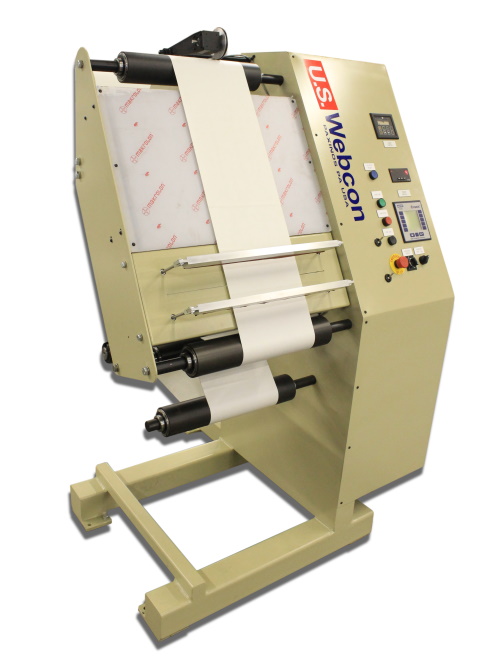

The above Cantilevered Inspection  Winder is used to unwind and rewind a narrow web silicone sponge rubber for manual visual web inspection.

US Webcon offers a cantilevered narrow web Inspection Winder to meet your production needs with numerous features and customized options to fit your specific requirements.  The US Webcon narrow web inspection winder is designed to inspect the web surface of paper, film and non-woven products on a roll to roll basis using back lighting or optional top lighting to highlight web defects for visual detection by the operator.

Options:

  • Top or over head lighting
  • Edge trimming
  • Optional cantilevered shaft unload carts
  • Automatic edge guiding or manual positioning
  • Closed loop dancer tension control
  • Driven unwinds for low tension applications

Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
