Slitter Winders


  • Designed for light applications; tape, label, pilot plant, laboratory, etc.
  • For slitting, salvage winding, and de-lamination of small rolls
  • Web width to 24"
  • Cantilevered with outboard supports
  • Requires only 27"x28" of floor space



Guide to Slitting Methods

Request a Quote

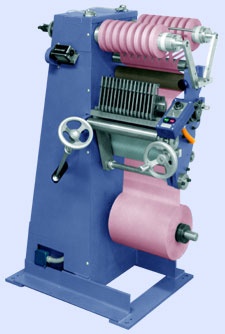

NSR Narrow Web Slitter Winder

Our economical NSR slitting unit is ideal for tape, label, pilot plant, and laboratory applications. They are designed for slitting, salvage winding, and de-lamination of small rolls.

Slitting is performed by razor, score or shear cutting methods. The units feature multiple diameter differential or air-expanding rewind mandrels. All rolls are cantilevered with outboard supports. The vertical configuration facilitates loading, unloading, thread-up, and floor space conservation. The unit footprint is a mere 27 x 28 inches.

The following specifications represent the capability ranges for NSR slitting equipment:

web width:

24 " max.

line speed:

500 fpm max.

unwind diameter:

20" max.

rewind diameter:

18" max.

rewind core id:

1" min. to 3" max.

slit widths:

1/2" min.

Related products:

US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
