Slitter Winders

Features:

  • Fully Welded heavy-duty construction for 24/7 operation
  • Machine can be designed to us Razor, Shear or Sore / Crush cut knife holders
  • Load cell tension control
  • Integral nip roll or S-Wrap pull roll to isolate the unwind from the rewind.
  • Mesh guards with interlocks or pressure mat safety control.



Products

Guide to Slitting Methods

Request a Quote



Back

NSR-15 Cantilevered Slitter Winder

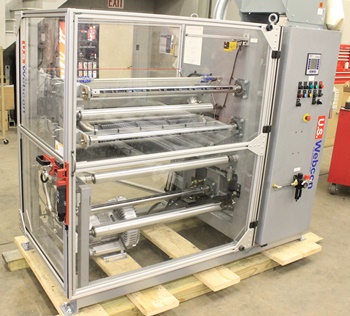

NSR-15 Cantilevered Duplex Slitter Winder designed to slit using Score Slitting

The above pictured NSR-15 Cantilevered Duplex Slitter Winder was designed to score / crush slit and duplex wind rolls of vinyl plastic for a medical product. The unit includes an Unwind, Score/Crush Slitting section and a duplex winder with an optional trim removal. Unit had custom Polycarbonate doors with safety interlocks.

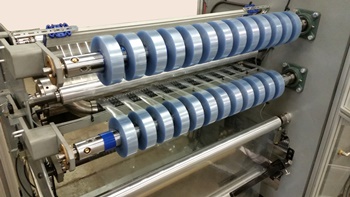

NSR-15 Cantilevered Duplex Slitter Winder designed to slit using Score Slitting

The slitter pictured to the left NSR-15 Cantilevered Duplex Slitter Winder showing score / crush slit medical grade vinyl being duplex wound on slip differential airshafts.

US Webcon offers a complete line of Slitter Duplex Winders with cantilevered winding mandrels designed to meet your production needs with numerous features and options to fit your specific requirements. These slitter winders designed for offline roll to roll operation. They are available in Razor, Shear or Score Slit / Crush Cut operation.



Options:

  • Trim blowers to remove trim.
  • Slip differential shafts to accommodate web thickness variation.
  • Closed loop dancer tension control.
  • Web footage counters
  • Underneath placement of the Unwind for a smaller footprint.
  • Static Elimination Bar
  • Edge guide for the web.

Related Products:

US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
