Small Roll Winders

Features:

  • Rigid steel structural tubing construction for 24/7 operation
  • Web length counter will stop the winder at the programmed length.
  • Air expanding shafts using aluminum construction
  • Closed loop load cell or dancer tension control
  • Self closing safety chucks



Products

Guide to Slitting Methods

Request a Quote



Back

Small Roll Surface Winder

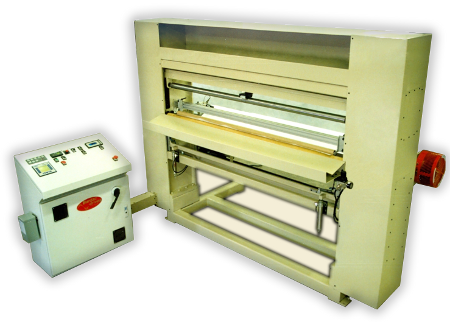

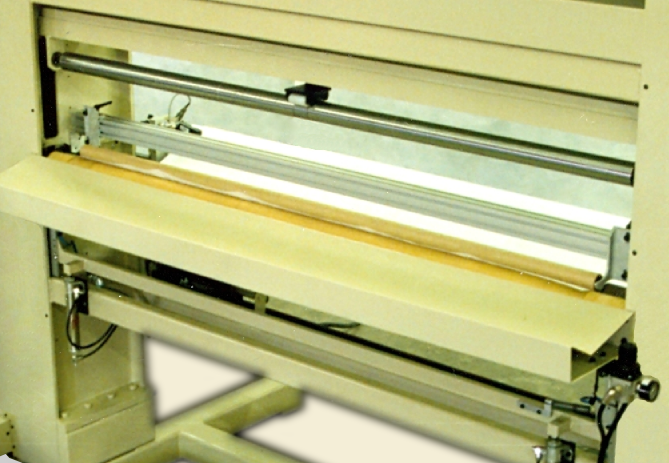

Small Roll Surface Log Winder

Machine is a Surface Driven Log Winder designed to break master rolls down into small rolls. The winder included an integral unwind with load cell tension control and photo electric edge guiding system. Optional dancer tension control and open loop ultrasonic tension control available.

US Webcon offers a complete line of stand alone Small Roll Winders, Log Winders or break down winders to meet your production needs with numerous features and options to fit your specific requirements. The shaftless surface driven winder shown above is designed to break down large master rolls of paper, film and nonwoven material rolls into small consumer rolls. A counter will stop the winder at the programmed web length and lift the top rider roll. An integral guided unwind stand controls web tension automatically and dynamically by a closed loop load cell tension control system.

Options:

  • Shaftless unwind designs available
  • Floor pick up of the product roll to eliminate the need for hoists
  • Score or shear cut web slitting
  • Electro mechanical guiding with photo or ultrasonic sensors
  • Driven unwinds for low tension applications
  • Dancer or ultrasonic tension control.
  • Floor pick up to rolls at floor level







Related products:



US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
