Turret Unwinds & Winders

Features:

  • Rigid steel sideplate construction for 24/7 operation.
  • A surface driver to match line speed for higher speeds.
  • Serrated knife using pneumatic actuation based on a footage pre-select cuts product rolls to length.
  • Magpartical brakes for tension sensitive webs.
  • Shafted or shaftless design.
  • Standard or phantom shafted design
  • Closed loop load cell or dancer tension control.
  • Driven unwinds are supplied with AC or DC Drives, Optional Touch Screens, and various PLC’s.



Products

Guide to Slitting Methods

Request a Quote



Back

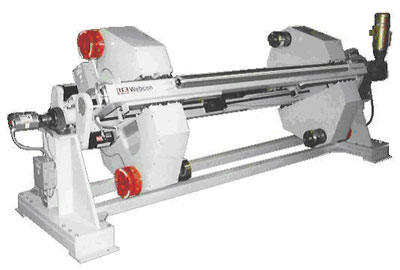

Shaftless Turret Unwind Stand

Shaftless Turret Unwind Stand

The above Shaftless Turret Unwind Stand was designed along with an accumulator to continuously unwind automotive air bag material into a process line. The chucks were torque activated with spring loaded core doffing pushers to discharge spent cores with out the operator having to step within the machine to retrieve the core.

Options:

  • Semi automatic or fully automatic operation
  • Shafted of Shaftless operation
  • Center or surface center winding.
  • Standard or phantom shafted design
  • Closed loop load cell or dancer tension control

Shaftless Turret Unwind with Bump Splice Section

Shaftless Turret Unwind with Dancer

This Shaftless Unwind Stand was designed to unwind a fiberglass nonwoven. The unwind includes a bump roll and a flying serrated knife for continuous unwinding. A dancer is used for closed loop tension control.



Related Products:

US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
