Web Accumulators

Features:

  • Self threading
  • Double pass accumulation
    to minimize required floor space
  • Driven nip rolls
  • Easy access to festoon



Products

Guide to Slitting Methods

Request a Quote



Back

Narrow Web Accumulator with two-position turret

narrow web festoon accumulator and turret rewind

This particular cantilevered, self-threading web accumulator was designed for narrow web. Upon operator initiated indexing of the turret, the accumulator activates, collecting 40 feet of web. This creates a ten second window to allow the operator to cut & transfer at the rewind position without halting production.

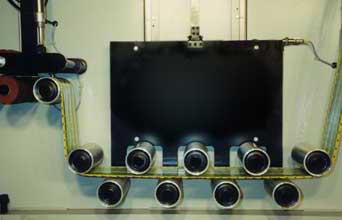

self-threading festoon accumulator

Shown on the left is the entry point tension isolation nip (1 of 2) and the self-threading feature of the web accumulator.
When the accumulator activates the lower tier of cantilevered shafts (which are attached to the black plate) are raised along a vertical track.


Related Products:

US Webcon can modify the above design to meet your specific needs and   requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
