The Economy Line

Features:

  • Rigid steel plate structural tubing construction for 24/7 operation
  • Economical Shafted operation
  • Air expanding airshafts and self closing chucks
  • AC vector motors and drives
  • Open loop ultrasonic tension control
  • Serrated knife using pneumatic actuation based on a footage pre-select cuts product rolls to length
  • Manual and Semi automatic operation

Products



Back

Shafted Turret Unwind

Economy Turret Unwind

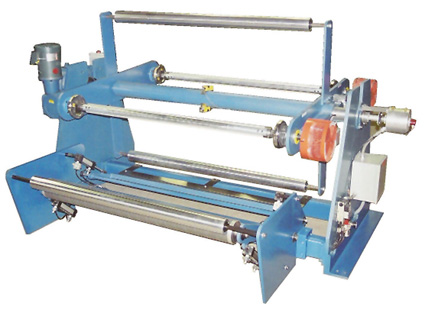

The above shafted turret unwind designed to economically unwind kraft paper into an industrial paper creper on a continuous basis. A basic but fully functional bump splice roll and flying knife is shown for on the fly roll to roll transfer.

US Webcon offers a complete set of Economy Line Turret Unwinds to meet your production needs with numerous features and options to fit your specific requirements. These winders are designed for both manual and continuous center unwinding of paper, films. textiles, and nonwoven webs. Each winding position includes a pneumatic brake, ultrasonic sensor used for open loop tension control, self closing safety chucks and an air expanding shaft to support the product roll.

Options:

  • Special automation available for core loading and roll unloading
  • Under or over unwind operation
  • Light, Medium or Heavy duty applications
  • Automatic edge guiding or manual positioning
  • Optional hydraulic lift tables for roll loading or unloading
  • Winders supplied with AC or DC drives with speed or torque control
