Turret Unwinds & Winders

Features:

  • Semi automatic or fully automatic operation
  • Shafted of Shaftless operation
  • Center or surface center winding.
  • Standard or phantom shafted design
  • Closed loop load cell or dancer tension control
  • Rigid steel plate structural tubing construction for 24/7 operation
  • Economical Shafted operation
  • Air expanding airshafts and self closing chucks
  • AC vector motors and drives
  • Dancer or load cell closed loop tension control
  • Serrated knife using pneumatic actuation based on a footage pre-select cuts product rolls to length




Products

Guide to Slitting Methods

Request a Quote



Back

Shafted Turret Winders

The above shafted turret winder was designed to continuously wind a 128" wide automotive air bag material in conjunction with a festoon accumulator.

US Webcon offers a complete line of Shafted Turret Center Winders to meet your production needs with numerous features and options to fit your specific requirements. These winders are designed for both manual and continuous center winding (change over section not shown) of paper, films. textiles, and nonwoven webs. Each winding position is driven by a vector duty AC motor and helical bevel gearcase thru a turret shaft mounted dual bearing housing. Product rolls are mounted on air expanding shafts placed in self-closing safety chucks.

Options:

  • Shaftless winding
  • Special automation available for core loading and roll unloading
  • Under or over unwind operation
  • Light, Medium or Heavy duty applications
  • Automatic edge guiding or manual positioning
  • Driven unwinds for low tension webs
  • Optional Touch Screens
  • Optional hydraulic lift tables for roll loading or unloading
  • Winders supplied with AC or DC drives with speed or torque control

Shafted Turret Winders

shafted turret winder graphic

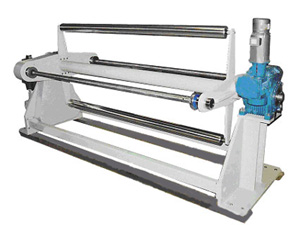

The above Shafted Turret Winder was designed to wind a rubber mat flooring after leaving the customer’s skiving equipment. This winder was designed to over wind or under wind as needed.

Related Products:

US Webcon can modify the above design to meet your specific needs and requirements. Call us to discuss your application with one of our engineers at (570) 644-1401.
